Industrial Grade Optical Engine

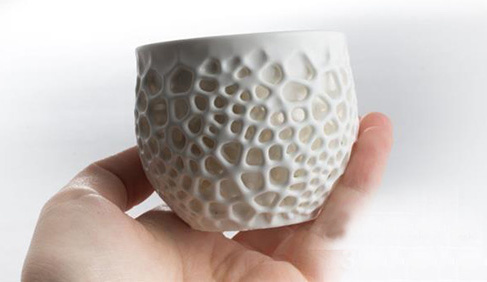

This product adopts UV LED or laser as the illumination light source, utilizes a DLP chip for image modulation, and achieves large-format, high-precision, and low-distortion exposure through high-precision imaging lenses. Larger exposure areas can be further realized by means of multi-unit splicing. It is applicable to 3D printing of resin, ceramic, and elastomer materials.

Get A Free Quote

Product Details

Product Parameters

Model	LTP‑sUHD‑Px
Platform	DLP6500
Resolution	3840×2160 XPR
Output Power	405nm@16W
Printing Resolution	25μm, 50μm, 75μm, 100μm, 120μm
Image Size	96mm×54mm@D130m m192mm×108mm@D223mm 288mm×162mm@D345mm 384mm×216mm@D453mm 450mm×324mm@D479mm
Offset	0%
Contrast (ANSI)	>1000:1
Uniformity	>90%
Distortion	<0.1%
Power Supply	24V/2A
Input Interface	HDMI1; USB1
I/O Interface	RS485
Dimension	240mm ×159mm ×247mm

Do you have any questions about our products? Contact our experts

Product Features

Industrial-grade design, features real-time system temperature and output power monitoring for exceptional stability.
Hermetically sealed optical path, prevents post-sale issues caused by material volatilization.
Ultra-compact architecture, enables high-precision multi-engines tiling within minimal space.
Advanced image processing, delivers superior intra-frame contrast and anti-aliasing for razor-sharp print.
