MT2009 Compact Line Laser Profile Sensor

The MT2009 compact line laser profile meter adopts the laser triangulation principle.

It is a miniaturized integrated 3D line laser measurement sensor with a compact and small body.

It does not require an external controller and is specifically designed for scenarios with limited equipment space.

It non-contactly collects the X-direction profile, height and 3D point cloud of the measured object, completing online detection of height differences, steps, gaps, flatness, grooves, and surface defects.

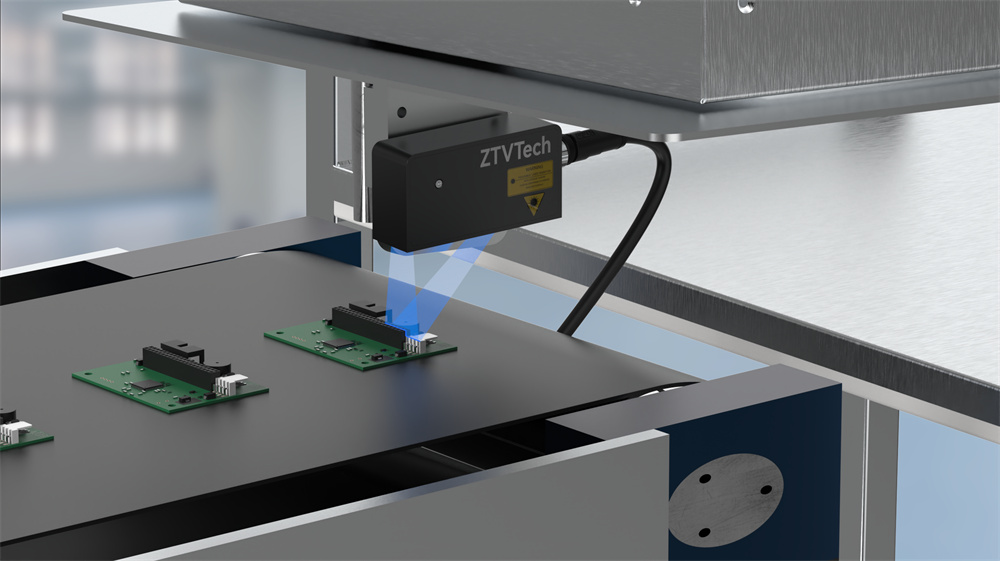

It is suitable for the installation space of automated equipment and is mostly used in precision small part production line inspection scenarios.

Get A Free Quote

Product Details

Product Parameters

Product	MT2009 Compact Laser Line Profiler
Principle	Laser triangulation (line profiling)
Field of View (X)	96 mm
WDWorking Distance (WD)	70 mm
Z Range	±40 mm (total 80 mm)
Laser Wavelength	405 nm
Interface	GigE (Gigabit Ethernet)
Dimensions (L×W×H)	86 × 44.5 × 26 mm
Output Data	Profile (X-Z) + Intensity (configurable)

Do you have any questions about our products? Contact our experts

Product Features

Ultra-Compact Design A lightweight, space-saving structure enables flexible installation in tight spaces and easy integration into robotic arms, automation equipment, and compact inspection systems.
High-Precision 3D Measurement High-resolution laser profiling delivers stable and accurate measurements of height, width, step, gap, flatness, and surface contours.
Fast & Flexible Integration High-speed data acquisition and standard industrial interfaces support real-time inspection and seamless integration into automated production lines.
