Overview
The line laser profile sensor is an industrial sensor specifically designed for 3D high-precision measurement.
By integrating a high-precision algorithm with high-quality laser lines, it outputs high-precision 3D point cloud data in real time.
It is widely used in industrial manufacturing fields such as photovoltaics, lithium batteries, 3C, electronics, and automobiles.
Product Parameters
| Technical Data | LS2201 | LS2204 | LS2208 | LS2215 |
| Measurement Range(Z-axis) | ±2 | ±5 | ±14 | ±40 |
| FOV(Nea|Mid|Far)(mm) | 10.7|11.3|11.8 | 38.6|41.1|43.7 | 76|83|90 | 174|155|126 |
| Lateral Resolution (X-axis)(μm) | 5.5 | 16 | 40 | 73 |
| Z-Repeatability(μm) | 0.2 | 0.5 | 0.8 | 2.5 |
| Z-Linearity | 0.015%of F.S | 0.012%of F.S | 0.018%of F.S | 0.012%of F.S |
| Scan Rate(Hz) | 1400-8000 | |||
| Laser Wavelength(nm) | 405 | |||
| Maximum Points(Pts) | 2048 | |||
| Working Distance(mm) | 34 | 65 | 81.65 | 114 |
| Weight(g) | 1130 | 1140 | 1180 | 1260 |
| Size(LxWxT)(mm) | 175*100*52 | 200*105*52 | 187*108*52 | 241*108*52 |
| Enclosure Rating | IP67, IEC 60529-2013 | |||
| Shock(3Axis) | 15G, IEC 60068-2-27 | |||
| Vibration | 2G, 20-500Hz, IEC 60068-2-6 | |||
| Operating Temperature | 0-45℃ | |||
| Operating Humidity | 10-85%RH | |||
| Electrical Safety | EN61010-1 | |||
| Maximum Ambient Light | 10,000 Ix | |||
Product Features
FPGA acceleration enables profile rates up to 8,000 Hz, capturing a complete X-axis profile in one scan for real- time inline 3D inspection.
X-axis resolution reaches 5.5 um, with Z-axis repeatability up to 0.2 um and measurement ranges from 2 mm to +40mm.
No external controller required. Gigabit Ethernet supports simultaneous output of 3D height data and 2D grayscale images for measurement, positioning, and inspection.

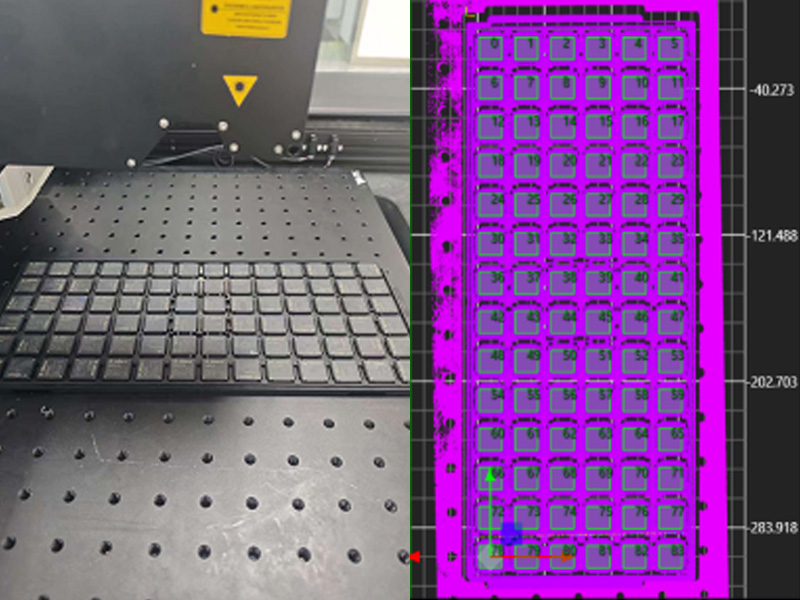

Application Scenarios
